SolvTrue™ S-Series Solvent Recyclers

For Painting and Coating, Printing and Composites Applications

Simple Distillation Recyclers Recover Up To 99% of Industrial Solvents

SolvTrue™ S-Series Solvent Recyclers are simple distillation systems that recover industrial solvents with up to 99% of their original purity, and are suitable for separating single solvent waste streams.

S-Series recyclers can process many solvents including Isopropyl Alcohol (IPA), Methyl Ethyl Ketone (MEK), Acetone, Toluene, paint thinners and other solvents used in industrial applications.

Industrial applications include: SLA/3D printing, painting and coating, and printing and composites.

Recycling cleaning solvents onsite and reusing them help reduce your waste generator status and cradle-to-grave hazardous waste liabilities.



Benefits & Features:

SolvTrue Product Line Brochure

SolvTrue Product Line Brochure

  • Microprocessor controlled with easy-to-read LCD display
  • Dual-wall stainless steel (Type 304) processing tank
  • Quiet operation and limited maintenance
  • Designed and built for multiple shift operations
  • Auto shutoff safety features
  • Built to C1D2 Specifications – Optional C1D1 Construction Available
  • UL2208 certified for use in non-hazardous environments



Vacuum Assist for Solvent Recyclers

For Painting and Coating, Printing and Composite Applications

Vacuum assist options are available for recycling solvents with a relatively high boiling point that may exceed the normal operating range of CBG recyclers. By placing the system under vacuum assist, the boiling point of the waste solvent is lowered substantially, allowing efficient processing of a normally high-boiling waste solvent. As a general rule, any solvent or solvent blend with a boiling point over 180°C (350°F) will require the vacuum assist option. CBG offers both air-powered and electric vacuum assist options.



Water Separator for Solvent Recyclers

For Printing Applications

Some waste solvent mixtures that contain water ultimately recover the recycled solvent with the water together and must be separated by a physical process. To do that, the recycled solvent is directed into the Solvent/Water Separator Module. The solvent is lighter than the water, so it is separated from the water as it naturally rises above the water level. The purified solvent is then removed from one pipe, while the pure water is removed from another pipe. The module is designed to facilitate this separation and easily channel the solvent and the water into their separate outlets automatically.

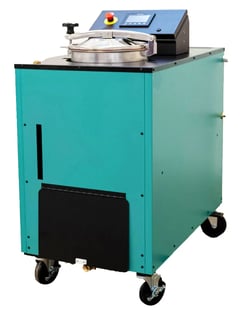

SolvTrue™ S700 Solvent Recycler

SolvTrue™ S700 Solvent Recycler

The SolvTrue™ S700 Solvent Recycler is a 7 gallon (26 liter) simple distillation recycler for processing acetone and other solvents.

Capacity:

7 gallon (26 liter)

Dimensions:

22.25" W x 39" L x 44" H (57 cm W x 99 cm H x 112 cm D)

Cooling:

Air cooled

Electrical Configurations:

120V/1PH/60Hz/20A – Standard

220/240V/60Hz/20A – Optional

Construction:

Stainless steel

Mounting:

Wheels – Standard





Download Spec Sheet



SEND ME MORE INFO

or call 1-800-941-9484 to speak with a specialist.

Please fill out the form below to learn more about the SolvTrue™ S700 Solvent Recycler.

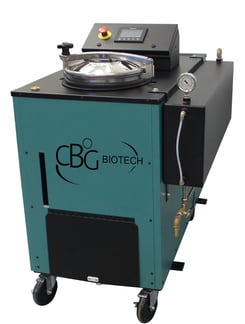

SolvTrue™ S700V Solvent Recycler with Vacuum Assist

SolvTrue™ S700V Solvent Recycler with Vacuum Assist

The SolvTrue™ S700V Solvent Recycler is a 7 gallon (26 liter) simple distillation recycler with vacuum assist for recycling industrial solvents with relatively high-boiling points including mineral spirits, naphthas, thinners and D-limonene.

Capacity:

7 gallon (26 liter)

Dimensions:

30.75" W x 43" L x 44" H (78 cm W x 109 cm H x 112 cm D)

with vacuum tank

Cooling:

Air cooled

Electrical Configurations:

220/240V/60Hz/20A – Standard

Construction:

Stainless steel

Mounting:

Wheels – Standard



Download Spec Sheet



SEND ME MORE INFO

or call 1-800-941-9484 to speak with a specialist.

Please fill out the form below to learn more about the SolvTrue™ S700V Solvent Recycler.




SolvTrue™ S1500 Solvent Recycler

SolvTrue™ S1500 Solvent Recycler

The SolvTrue™ S1500 Solvent Recycler is a 15 gallon (57 liter) simple distillation recycler for processing acetone and other solvents.

Capacity:

15 gallon (57 liter)

Dimensions:

30" W x 48" L x 50" H (76 cm W x 122 cm H x 127 cm D)

Cooling:

Air cooled

Construction:

Stainless steel

Electrical Configurations:

220/240V/3PH/60Hz – Standard

440/480V/3PH/60Hz – Optional

Mounting:

Legs – Standard

Wheels – Optional

Other:

Batch-style or optional continuous-feed processing



Download Spec Sheet



SEND ME MORE INFO

or call 1-800-941-9484 to speak with a specialist.

Please fill out the form below to learn more about the SolvTrue™ S1500 Solvent Recycler.




SolvTrue™ S3000 Solvent Recycler

SolvTrue™ S3000 Solvent Recycler

The SolvTrue™ S3000 Solvent Recycler is a 30 gallon (114 liter) simple distillation recycler for processing acetone and other solvents.

Capacity:

30 gallon (114 liter)

Dimensions:

30" W x 48" L x 69" H (76 cm W x 122 cm H x 175 cm D)

Cooling:

Air cooled

Construction:

Stainless steel

Electrical Configurations:

220/240V/3PH/60Hz – Standard

440/480V/3PH/60Hz – Optional

Mounting:

Legs – Standard

Other:

Batch-style or optional continuous-feed processing



Download Spec Sheet



SEND ME MORE INFO

or call 1-800-941-9484 to speak with a specialist.

Please fill out the form below to learn more about the SolvTrue™ S3000 Solvent Recycler.




SolvTrue™ S6000 Solvent Recycler

SolvTrue™ S6000 Solvent Recycler

The SolvTrue™ S6000 Solvent Recycler is a 60 gallon (227 liter) simple distillation recycler for processing acetone and other solvents.

Capacity:

60 gallon (227 liter)

Dimensions:

60" W x 76" L x 76" H (152 cm W x 193 cm H x 193 cm D)

Cooling:

Air cooled

Construction:

Stainless steel

Electrical Configurations:

440/480V/3PH/60Hz – Standard

Mounting:

Legs – Standard

Other:

Vacuum assist - Optional

Rapid oil cool-down - Optional



Download Spec Sheet



SEND ME MORE INFO

or call 1-800-941-9484 to speak with a specialist.

Please fill out the form below to learn more about the SolvTrue™ S6000 Solvent Recycler.

CBG_checkmark

Guaranteeing

Our Solvent Recovery System

is the Right Fit.




We offer a sample testing program.

Learn more





CBG_maintenance

Onsite Start-up,

Preventive Maintenance

and DIY Kits.




We offer 24/7/365 service and support.

Learn more





General Formulations

General Formulations recovers 92% of solvent by weight on average with SolvTrue™ S6000 Solvent Recycler.

Read the case study
