SolvTrue™ F-Series Solvent Recyclers

For Industrial Applications WITH MULTIPLE WASTE STREAMS

Fractional Distillation Recyclers Recover up to 99% of Industrial Solvents

SolvTrue™ F-Series Solvent Recyclers are the industry standard for recovery rates and purities. These fractional distillation recyclers recover solvents with up to 99% of their original purity and are suitable for separating multiple solvent waste streams and customized applications.

F-Series recyclers can process solvents including Isopropyl Alcohol (IPA), Chloroform, Hexane, Ethyl Alcohol, Methyl Ethyl Ketone (MEK), Methanol and other solvents used in industrial applications.

Achieve sustainability and cost savings in your facility with solvent recycling.



Benefits & Features:

SolvTrue Product Line Brochure

SolvTrue Product Line Brochure

  • Microprocessor controlled with easy-to-read LCD display
  • Custom programming options for special solvent requirements or additional solvents
  • No additional water hookup required
  • Designed and built for multiple shift operations
  • Auto shutoff safety features
  • Built to C1D2 Specifications – Optional C1D1 Construction Available
  • UL2208 certified for use in non-hazardous environments

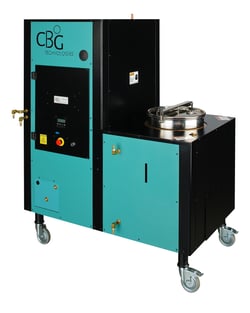

SolvTrue™ F800 Solvent Recycler

SolvTrue™ F800 Solvent Recycler

The SolvTrue™ F800 Solvent Recycler is an 8 gallon (30 liter) fractional distillation recycler with closed loop operating system, safe hands hydraulic lift tank lid and automatic shutoff. This system processes acetone and other solvents used in industrial applications.

Capacity:

8 gallon (30 liter)

Dimensions:

34" W x 54" L x 68.5" H (86 cm W x 137 cm H x 174 cm D)

Fill Pump:

Push button – Standard

Computer operated – Optional

Cooling:

Air cooled

Chilled – Optional

Electrical Configurations:

220/240V/3PH/60Hz – Standard

440/480V/3PH/60Hz – Optional

208V/1PH/60Hz – Optional

Construction:

Stainless steel

Mounting:

Wheels – Standard

Other:

Vacuum distillation – Optional



Download Spec Sheet



SEND ME MORE INFO

or call 1-800-941-9484 to speak with a specialist.

Please fill out the form below to learn more about SolvTrue™ F800 Solvent Recyclers.

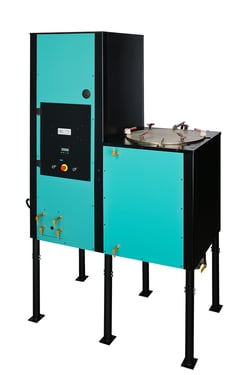

SolvTrue™ F2500 Solvent Recycler

SolvTrue™ F2500 Solvent Recycler

The SolvTrue™ F2500 Solvent Recycler is a 25 gallon (95 liter) fractional distillation recycler with closed loop operating system, safe hands hydraulic lift tank lid and automatic shutoff. This system processes acetone and other solvents used in industrial applications.

Capacity:

25 gallon (95 liter)

Dimensions:

34" W x 58.75" L x 100.5" H (86 cm W x 149 cm H x 255 cm D)

Fill Pump:

Push button – Standard

Computer operated – Optional

Cooling:

Air cooled

Chilled – Optional

Electrical Configurations:

220/240V/3PH/60Hz – Standard

440/480V/3PH/60Hz – Optional

208V/1PH/60Hz – Optional

Construction:

Stainless steel

Mounting:

Legs (101.5" high) – Standard

Extended legs (111" high) – Optional

Other:

Vacuum distillation – Optional



Download Spec Sheet



SEND ME MORE INFO

or call 1-800-941-9484 to speak with a specialist.

Please fill out the form below to learn more about SolvTrue™ F2500 Solvent Recyclers.

CBG_checkmark

Guaranteeing

Our Solvent Recovery System

is the Right Fit.




We offer a sample testing program.

Learn more





CBG_maintenance

Onsite Start-up,

Preventive Maintenance

and DIY Kits.






We offer 24/7/365 service and support.

Learn more





ChemGenes Corporation

ChemGenes Corporation Continues to Lead in Toxic Use Reduction with SolvTrue™ F2500 Solvent Recycler

Read the case study
