PathTrue™ FormaSolve™ Recycler

Recycle Xylene, Alcohol and Acetone with 90-95% Recovery and Formalin with 80% Recovery

PathTrue™ FormaSolve™ Recyclers are flexible fractional distillation systems for recycling a combination of laboratory solvents including formalin, xylene, alcohol and xylene substitutes in pathology, histology, chemistry and research laboratories.

Achieve sustainability and cost savings in your lab with solvent recycling.



Benefits & Features:

  • Recycle xylene at 60 to 75 minutes per gallon
  • Recycle formalin at approximately 120 minutes per gallon
  • Recycle alcohol at 90 to 115 minutes per gallon
  • No cool-down between runs
  • No hot surfaces - cool to touch
  • Spill containment and leak prevention design
  • Microprocessor controlled; fully-automated formalin recycling process
  • Automatic waste disposal
  • No water hook-up or special ventilation required

PathTrue Product Line Brochure

PathTrue Product Line Brochure




PathTrue™ FormaSolve Recycler

PathTrue™ FormaSolveRecycler

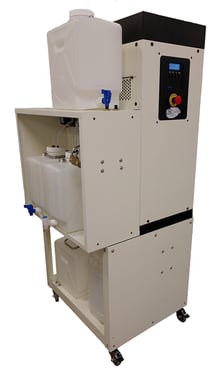

The PathTrue™ FormaSolve™ Recycler is a mobile cart-mounted fractional recycler for formalin, xylene, alcohol and xylene substitute recycling.

Capacity:

2.5 gallon (10 liter)

5 gallon (20 liter)

Dimensions:

24.25" W x 67" H x 30.5" D (62 cm W x 170 cm H x 77 cm D)

Plus 4" (10 cm) shroud on side

Cycle Times:

Recycle xylene at 60 to 75 minutes per gallon

Recycle alcohol at 90 to 115 minutes per gallon

Recycle formalin at approximately 120 minutes per gallon

Electrical Configurations:

120 VAC, 15.0 A, 50/60 Hz

220 VAC, 7.5 A, 50/60 Hz

240 VAC, 8.2 A, 50/60 Hz

Compliance with:

ETL listed to UL61010 and UL2208
